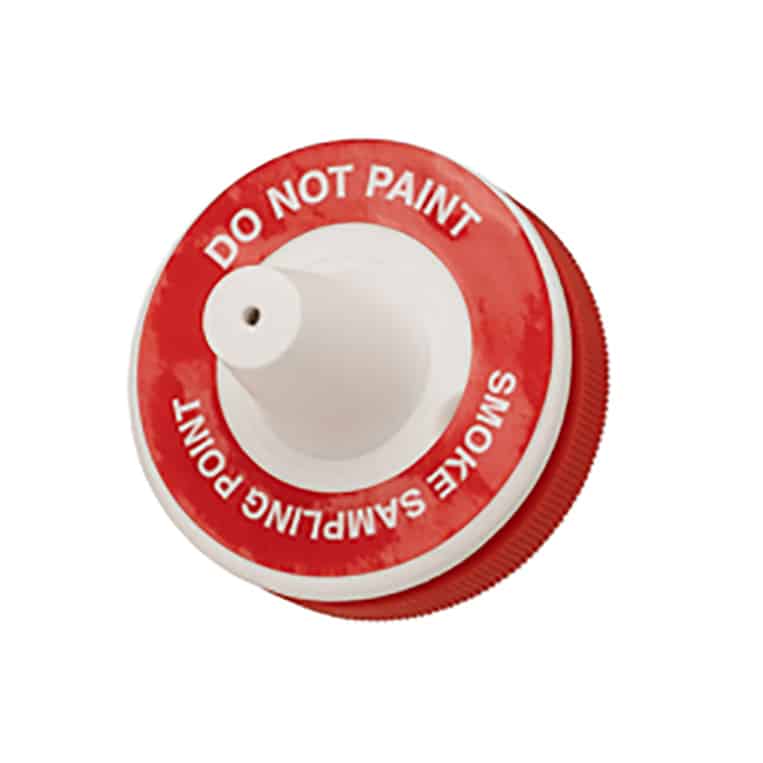

Sold either as part of a conical sampling kit (ABS019C) or individually, it is fixed to a ceiling tile or chill or frozen store ceiling with the nut or washer (supplied) to sample air. The conical shape is specifically designed to avoid ice or condensation from freezing over or covering the sampling hole. The 10mm OD tubing is a push fit to the top of the conical head, linking it to the capillary T piece.

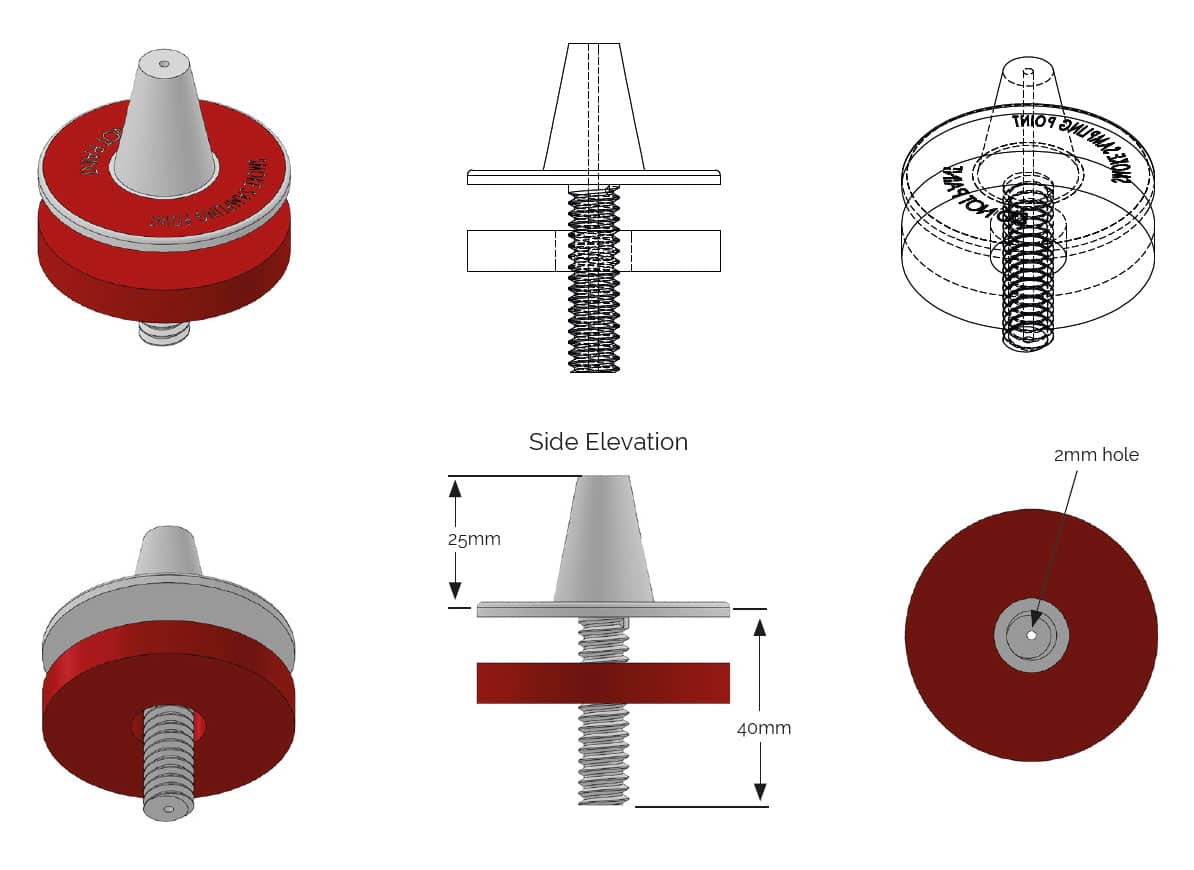

ABS019C-HO/25 – 25mm – CONICAL HEAD
Do not paint. Keep pipe clean and free from dust. Do not install in direct sunlight. Only install with approved pipe. Do not use solvents to clean, only soapy water.
Pipe Colour: RED
Diameter Tolerance: +/- 0.15mm
