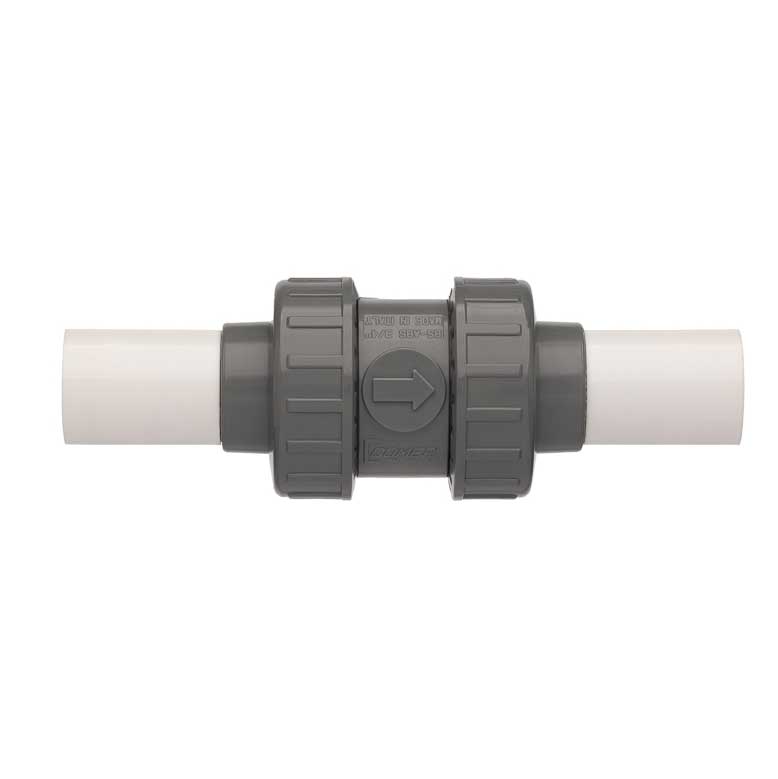

This is a Non Return Valve, used when the system is being cleaned, preventing dust from returning to certain area’s of the pipe run.
WHABSCV – 25mm – NON RETURN VALVE
Description
Installation Instructions:
Use the correct solvent Plusbond 3019. Do not paint. Keep pipe clean and free from dust. Do not install in direct sunlight. Only install with approved pipe. Do not use solvents to clean, only soapy water.
PART NO.: R- ABSCV – 25
FITTINGS COLOUR: White
PIPE COLOUR: White
DIAMETER TOLERANCE: + / – 0.15mm’
OPERATING TEMP: – 40 c to 70 c’
WALL THICKNESS: 2mm
INSIDE DIAMETER: 21mm
