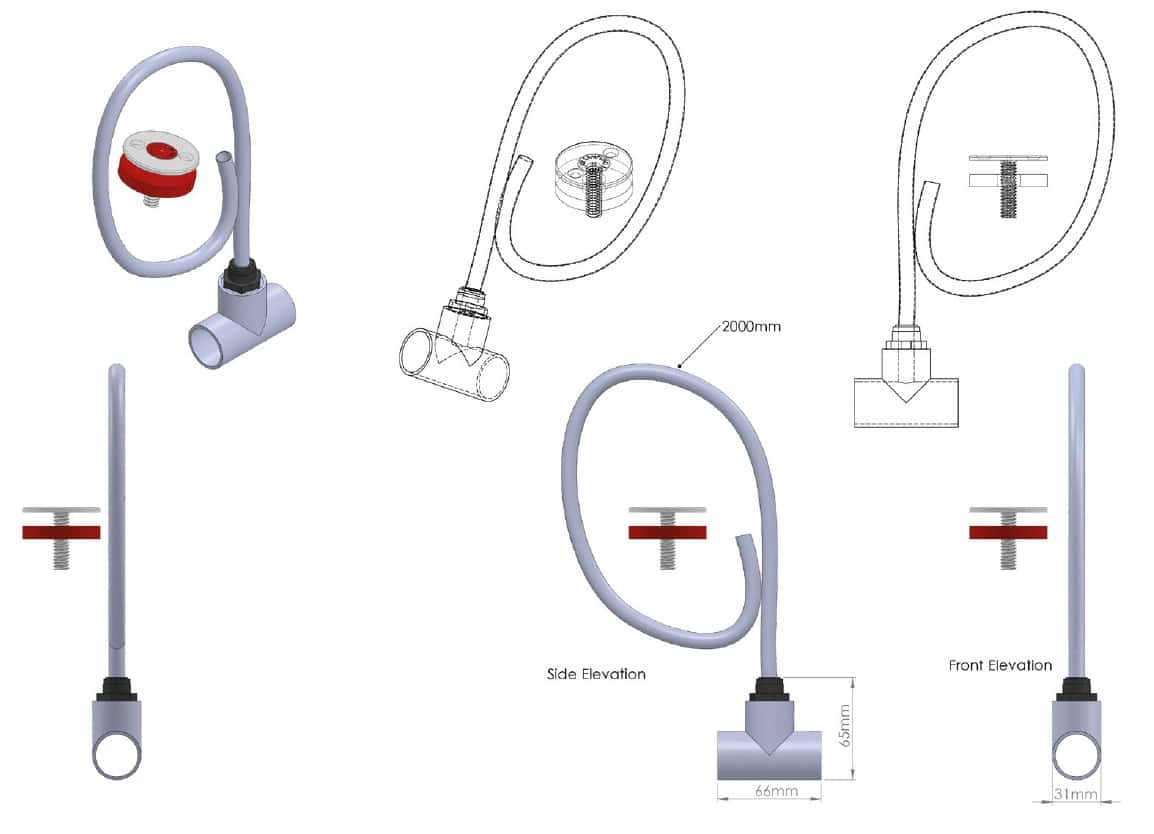

The adapter is used to join the 10mm tubing to the body of the T piece, simply push the tube into the adapter until it clicks in position. It can be removed by pushing on the black circular ring.

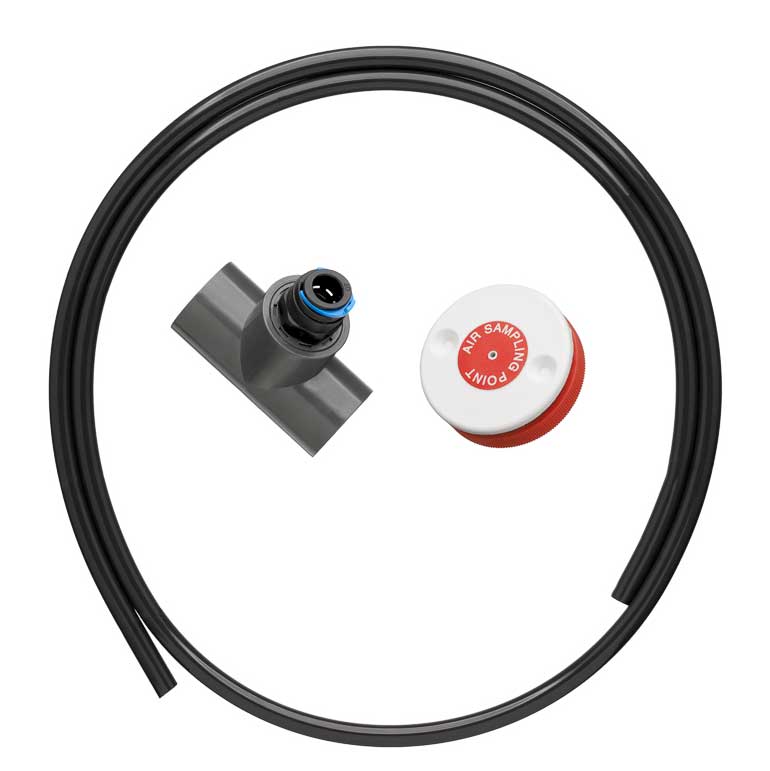

ABSG042F – 25mm – FLUSH KIT WITH T COMPRESSION ADAPTER
Descripción
Installation Instructions:
Use the correct solvent Plusbond 3019. Do not paint. Keep pipe clean and free from dust. Do not install in direct sunlight. Only install with approved pipe. Do not use solvents to clean, only soapy water.
PART NO.: ABSG042F – 25
FITTINGS COLOUR: Grey
PIPE COLOUR: Grey
DIAMETER TOLERANCE: + / – 0.15mm’
OPERATING TEMP: – 40 c to 70 c’
WALL THICKNESS: 2mm
WEIGHT: 113.8g
