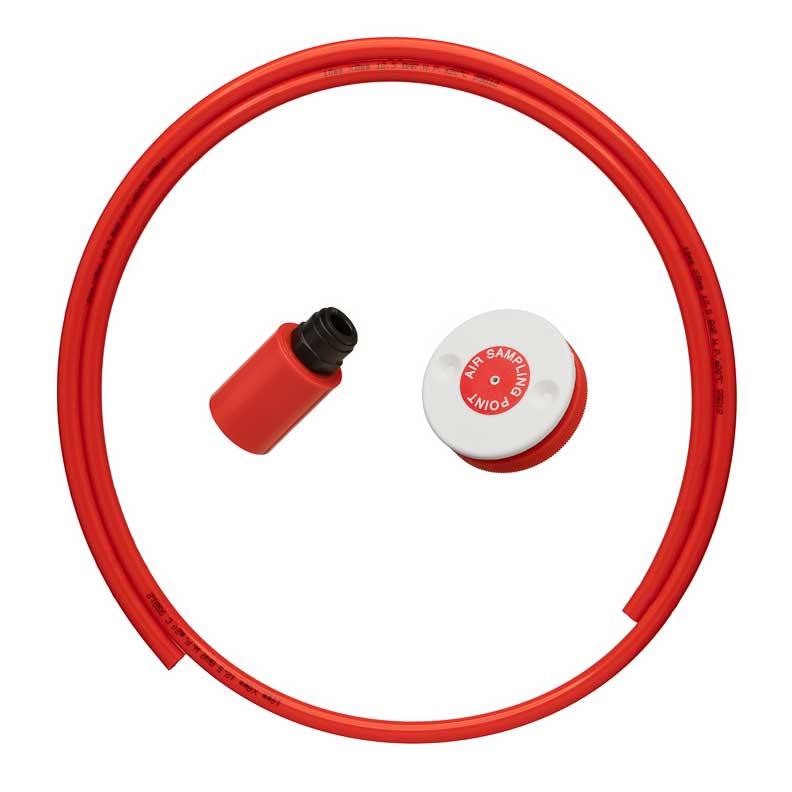

The flush end kit is used at the end of a pipe run to sample air. This product has the advantage of having a compression adapter, which is used to join the 25mm pipe to the 10mm nylon tubing by clicking into position, or as required pushing on the black ring to remove.

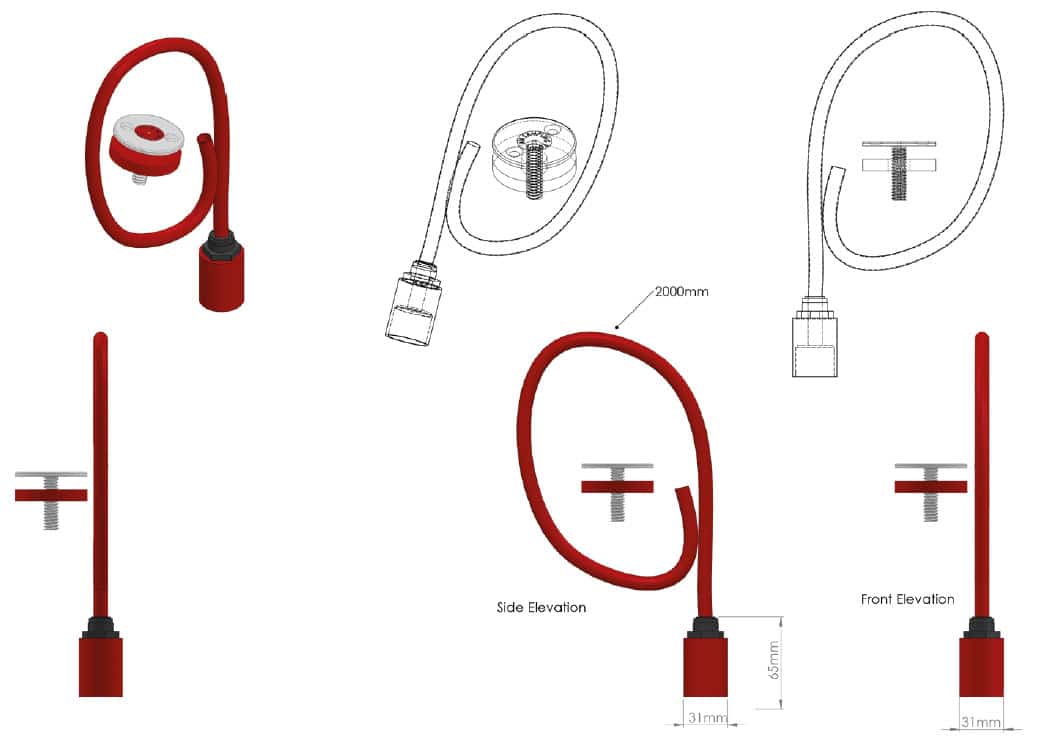

ABS042F/EC – 25mm – FLUSH END CAP KIT WITH SOCKET COMPRESSION ADAPTOR
Description
Installation Instructions:
Use the correct solvent Plusbond 3019. Do not paint. Keep pipe clean and free from dust. Do not install in direct sunlight. Only install with approved pipe. Do not use solvents to clean, only soapy water.
PART NO.: ABS042F/EC – 25
FITTINGS COLOUR: Red
PIPE COLOUR: Red
DIAMETER TOLERANCE: + / – 0.15mm’
OPERATING TEMP: – 40 c to 70 c’
WALL THICKNESS: 2mm
WEIGHT: 102.4g
